Class 7 Mathematics
Chapter 11 - Perimeter and Area
Chapter Notes

Conversion of Units

Sometimes we need to convert the unit of the given measurements to make it similar to the other given units.

Unit

Conversion

1 cm

10 mm

1 m

100 cm

1 km

1000 m

1 hectare(ha)

100 × 100 m

1 cm2

100 mm2

1 m2

10000 cm2

1 km2

1000000 m2

1 ha

10000 m2

Question: Convert 38 cmin mm2

Solution:

1 cm = 10 mm

1 cm= 1 cm × 1 cm

  =10 mm × 10 mm

1 cm= 100 mm2

38 cm= 38 × 100 mm2 = 3800 mm2

Question: Convert 9.1 ha in m2

Solution:

1 ha = 10000 m2

9.1 ha = 9.1 × 10000 m2

          = 91000 m2

Perimeter

Perimeter is the length of the outline, i.e., boundary of a closed figure.


Area

Area is the amount of surface of a closed figure.

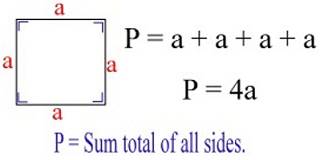

Perimeter of Square

Perimeter of square = 4 × Side


Area of Square

Area of square = Side × Side


Question: Find the area and perimeter of a square-shaped cardboard whose length is 7 cm.


Solution:

Area of square = (side)2

= (7)2

= 49 cm2

Perimeter of square = 4 × side

= 4 × 7

= 28 cm

Perimeter of Rectangle

Perimeter of rectangle = 2(Length + Breadth)


Area of Rectangle

Area of rectangle = Length × Breadth


Question: What is the length of a rectangular field if its width is 80 ft and Area is 2400 ft2?

Solution:


Area of rectangular field = length × width

2400 = l × 80

l = 2400/80

l = 30 ft



Perimeter of a regular polygon = Number of sides × length of one side



Triangles as Parts of Rectangles

Diagonal of a rectangle divides itself in two equal triangles.

Hence, the area of these triangles = half of the area of a rectangle.


The area of each triangle = 1/2 (Area of the rectangle)



Similarly, two diagonals of a square divide itself in four equal triangles.

Hence, the area of each triangle = one-fourth of the area of the square.


The area of each triangle = 1/4 (Area of the square)

Question: What will be the area of each triangle if we draw two diagonals of a square with side 12 cm?

Solution:

Area of square = 12 × 12

= 144 cm2

The area of each triangle = 1/4 (Area of the square)

= 1/4 × 144

= 36 cm2

Congruent Parts of Rectangles

Two parts of a rectangle (made by a straight line) are congruent to each other if the area of the first part is equal to the area of the second part.

The area of each congruent part = 1/2 (Area of the rectangle)

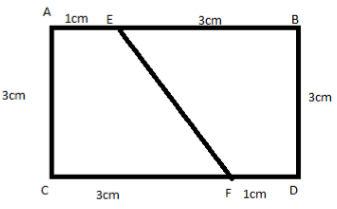

Question: Find the area of each part of the given rectangle.


Solution:

The area of each congruent part = 1/2 (Area of the rectangle)

= 1/2 (l × b) cm2

=1/2 (4 × 3) cm2

= 1/2 (12) cm2

= 6 cm2

Area of Parallelogram

Area of parallelogram = base × height

 Or b × h or (bh)

Any side of the parallelogram can be considered as the base.

The perpendicular drawn on that side from the opposite vertex is the height of the parallelogram.

Question: Find the area of the figure given below:

(all measures in cm)


Solution:

Base of gm = 15 cm

Height of gm = 10 cm

Area of gm = b × h

= 15 × 10

= 150 cm2

Area of Triangle

If we join two congruent triangles together then we get a parallelogram.

Hence, the area of the triangle = half of the area of the parallelogram.


Area of Triangle = 1/2 (Area of  gm)

= 1/2 (base × height)

Question: Find the area of the figure given below:

(All measures in cm)


Solution:

Area of triangle = 1/2 (base × height)

= 1/2 (4 × 3)

= 1/2 × 12

= 6 cm2



Circumference of a Circle

The circumference of a circle refers to the distance around the circle. It is perimeter of the circle.

Radius of the circle: A straight line from any point on the circumference to the centre of the circle.

Diameter of the circle: A straight line passing through centre of the circle, from one point on the circumference to the other point on the circumference.

diameter (d) = twice the radius (r)

d = 2r

π (pi): It is the ratio of the circumference to the diameter of a circle.


Circumference(c) = π × diameter

C = πd

    = π × 2r

C = 2πr


Question: What is the circumference of a circle of diameter 18 cm (Take π = 3.14)?

Solution:

C = πd

C = 3.14 × 18

= 56.52 cm

Area of Circle

Area of the circle = (Half of the circumference) × radius

= πr2


Question: Find the area of a circle of radius 17 cm (use π = 3.14).

Solution:

r = 17 cm

π = 3.14

Area of circle = 3.14 × 172

= 907.46 cm2

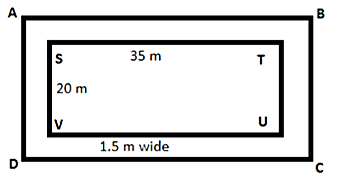

Question: A rectangular park is 35 m long and 20 m wide. A path 1.5 m wide is constructed outside the park. Find the area of the path.


Solution:

Area of the path

= Area of rectangle ABCD – Area of rectangle STUV

AB = 35 + 2.5 + 2.5

= 40 m

AD = 20 + 2.5 + 2.5

= 25 m

Area of ABCD = 40 × 25

= 1000 m2

Area of STUV = 35 × 20

= 700 m2

Area of path = Area of rectangle ABCD – Area of rectangle STUV

= 1000 – 700

= 300 m2
